Creative Countertops Lift System |  Accessible Home Solution

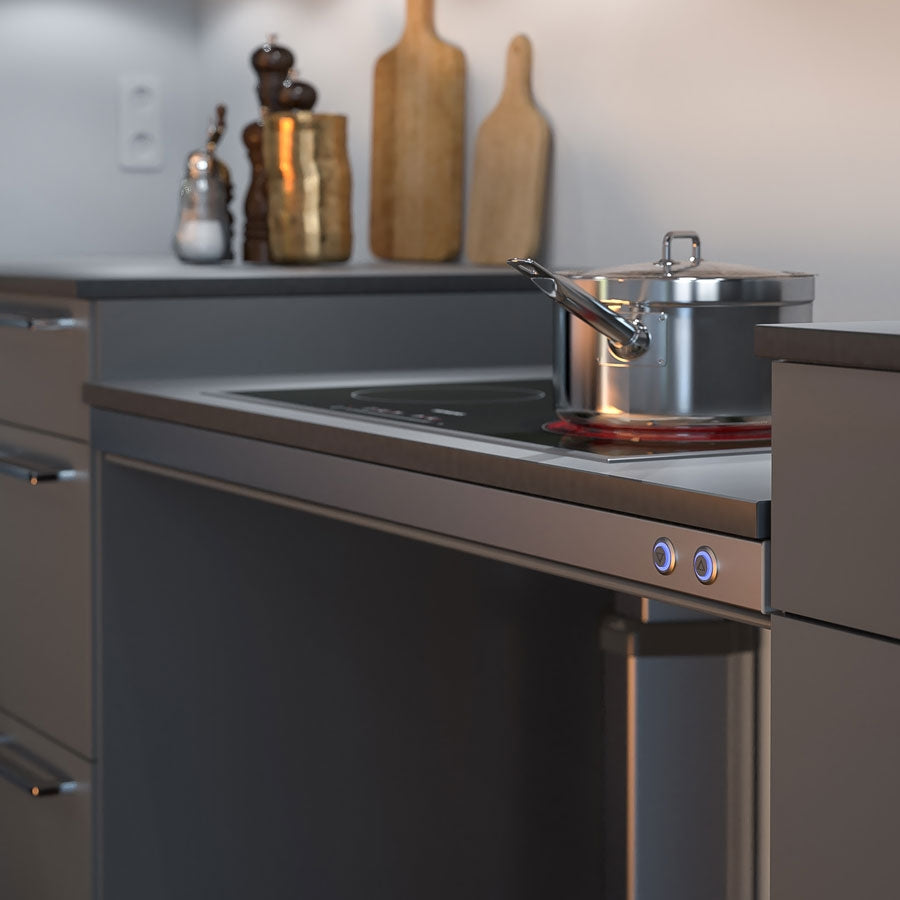

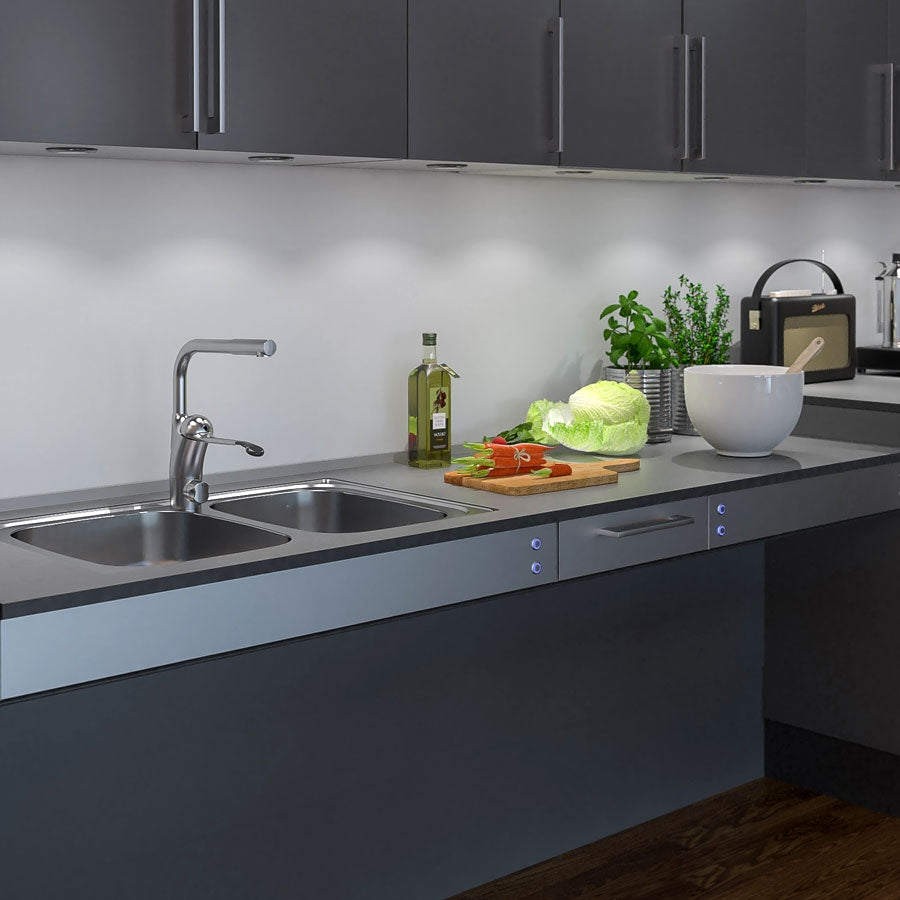

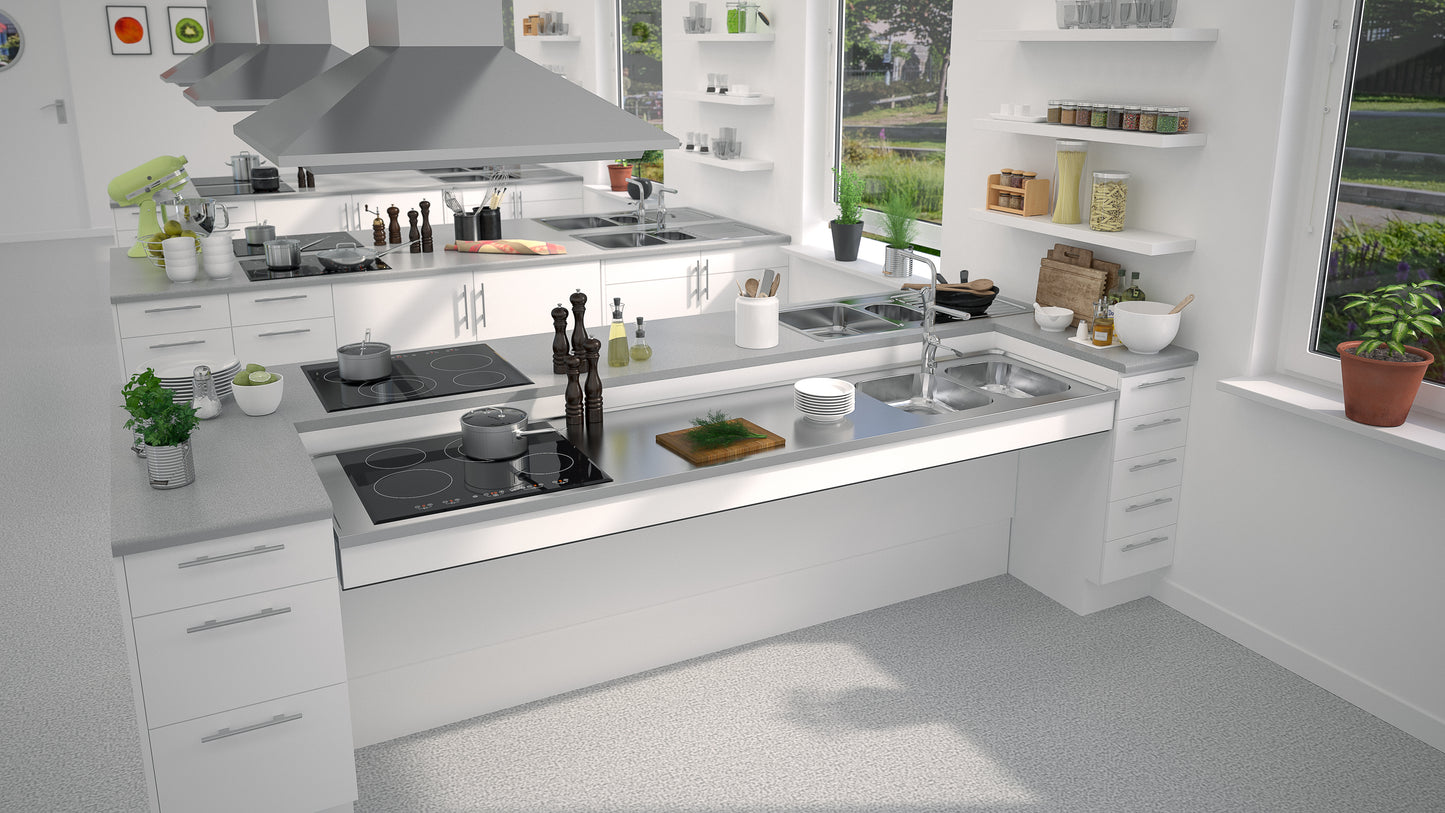

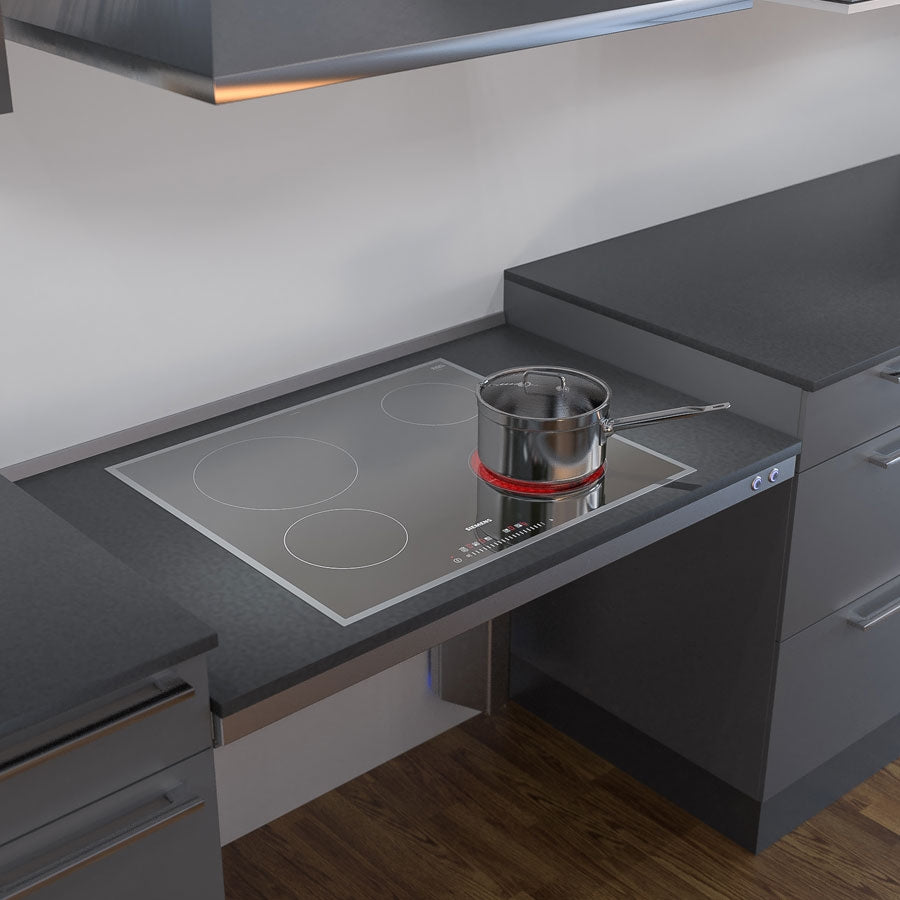

BASELIFT 6300 / 6310 is a worktop lift with great flexibility to be adapted for different needs.

The lift can be used separately or together with Granberg's wall cabinet lift to totally adapt the kitchen. Space is left open below the work surface for knees and legs. Installations below the work surface, (motors, water, drainage), can be concealed by telescopic cover plates that give the kitchen an attractive appearance.

The motors are continuously adjustable and move the work surface quickly and silently to the required height. The lift is equipped with a reliable safety system that guarantees safe operation with no risk of crushing.

The equipment on the work surface is selected according to the function desired. A sink unit, hob, drawers, chopping boards, and other accessories can be integrated with the work surface.

Specification:

Installation Wall-mounted
Front height 4.06" (103 mm)
Height adjustment

Motorised, steplessly adjustable 11.8" (300 mm), 27.6"-39.4" (700-1000 mm) excl. top board

Speed level 1.2" (30 mm) / sec.
Operation Recessed mounted button
Safety

The safety strip is placed under the front edge of the worktop.
If anything touches the safety strip, the lifting unit stops

Electrical connection Plug for 110 V, max 10A
Plumbing connections Connection is made with flexible hoses
Lifting force 220 lb (100 kg)
IP-class IP 20
Frame depth 22.0"- 23.2" (560-590 mm)
Dimensions cover plates

2 pcs, width = width of the lift -0.394" (-10 mm), height 17.24" (438 mm),
thickness 0.472"-0.787" (12-20 mm)

Width worktop Width = width of the lift
Depth worktop 0.59" (15 mm) shallower than worktops on fixed cabinets
Space to wall / adjoining cabinet 0.197" (5 mm)
Space to wall (for tiles) 0.59" (15 mm)
Tiling From 27.56" (700 mm) above floor (alternatively all the way down to the floor)
Delivery modules

Ready-mounted worktop incl. safety switch, motors

Fittings supplied Bracket for fronts
Material

Aluminium frame

Warranty 3 years warranty
Granberg makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Dimensions
Dimensions - Countertop lift system Baselift 6300HA - Wall-mounted, 4.06
Dimensions - Countertop lift system Baselift 6300HA - Wall-mounted, 4.06
Dimensions - Countertop lift system Baselift 6300HA - Wall-mounted, 4.06

Functions and Advantages

  • Can be equipped with drawers, hob and sink
  • 11.8" (30 cm) height adjustment
  • Adjustable depth, 22.0"- 23.2" (560-590 mm) from wall
  • Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
  • Electronic and motor system "Plug and Play"
  • Safety strip covers the front edge under the worktop. (Installed from factory)
  • Brackets and screws for the installation of fronts and top board are included in the delivery

Useful information

  • The top board’s depth must be 0.6" (15 mm) shallower than adjoining top boards (to provide a gap for tiles and movement)
  • Width of the top board = width of the lift
  • Sink bowls with a maximum height of 4.7" (120 mm) can be integrated (not 6300L/6310L)
  • Electronics and motor system "Plug and Play"
  • Width of front = width of lift -0.2" (-4 mm)
    Height of front:6300H/6310H = 4.1" (103 mm), 6300L/6310L = 1.6" (40 mm). Fittings enclosed
  • Cover panels can hide installations under the worktop 2 pcs width = width of lift -0.4" (-10 mm), height 17.2" (438 mm), thickness 0.5"-0.8" (12-20 mm).

Standard equipment

  • Factory-mounted aluminium system with movable and tiltable brackets
  • Wall-mounted motors
  • Safety switch

Say Goodbye to Back Pain: The Game-Changing Countertop Lift System!

Back pain is a common issue that affects millions of people worldwide. It can be caused by various factors such as poor posture, prolonged sitting or standing, and lifting heavy objects. If left unattended, it can lead to more severe conditions that may require surgery or long-term medication. Today we will introduce you to a game-changing countertop lift system that can help you say goodbye to back pain.

How Does a Countertop Lift System Work?

A countertop lift system works by using a set of motors and gears that are hidden inside the countertop. When you press a button or use a remote control, the motors are activated, and the gears start turning. This causes the countertop to lift or lower, depending on your preference. The process is smooth and effortless, and you can adjust the height of your countertop in a matter of seconds.

Benefits of Using a Countertop Lift System

Using a countertop lift system has several benefits, including:

1. Improved Posture

One of the main causes of back pain is poor posture. When you use a countertop lift system, you can adjust the height of your countertop to the perfect level, reducing the strain on your back and neck. This helps you maintain a proper posture, reducing the risk of back pain.

2. Increased Productivity

When you are in pain, it can be challenging to focus on your work or tasks. With a countertop lift system, you can reduce or eliminate back pain, allowing you to focus on your work or tasks. This increases your productivity and makes it easier for you to achieve your goals.

3. Better Health

Back pain can lead to more severe conditions that may require surgery or long-term medication. Using a countertop lift system can help you reduce the risk of developing such conditions, promoting better health and well-being.
