Description:

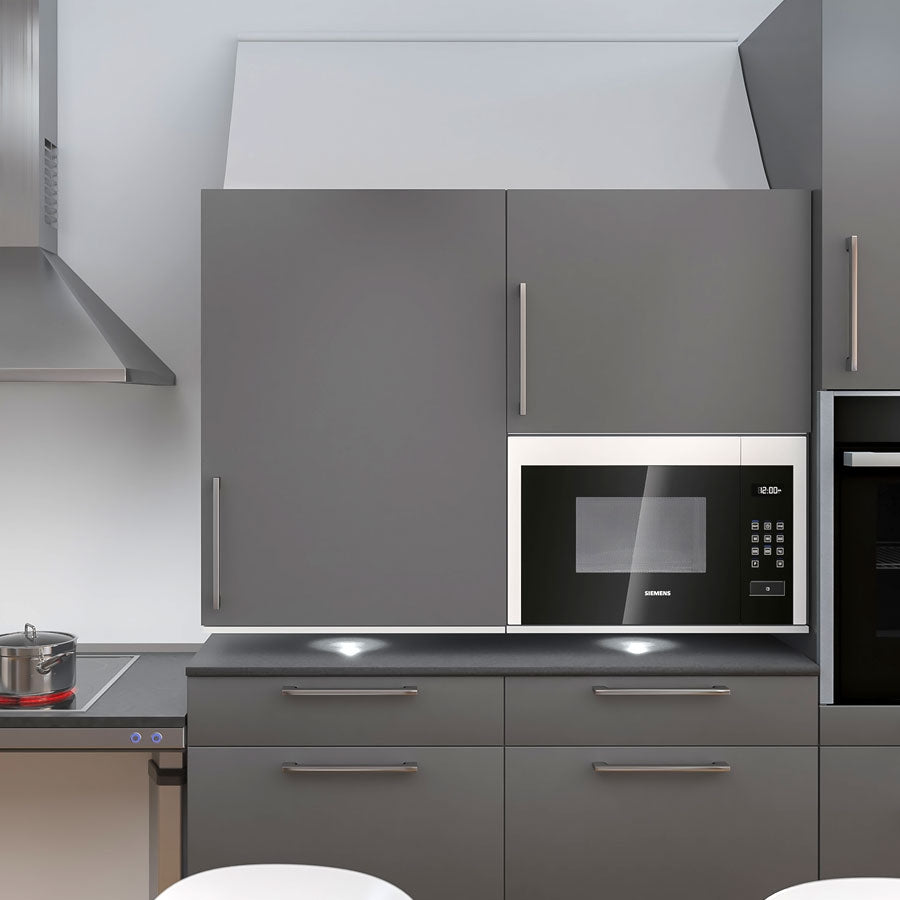

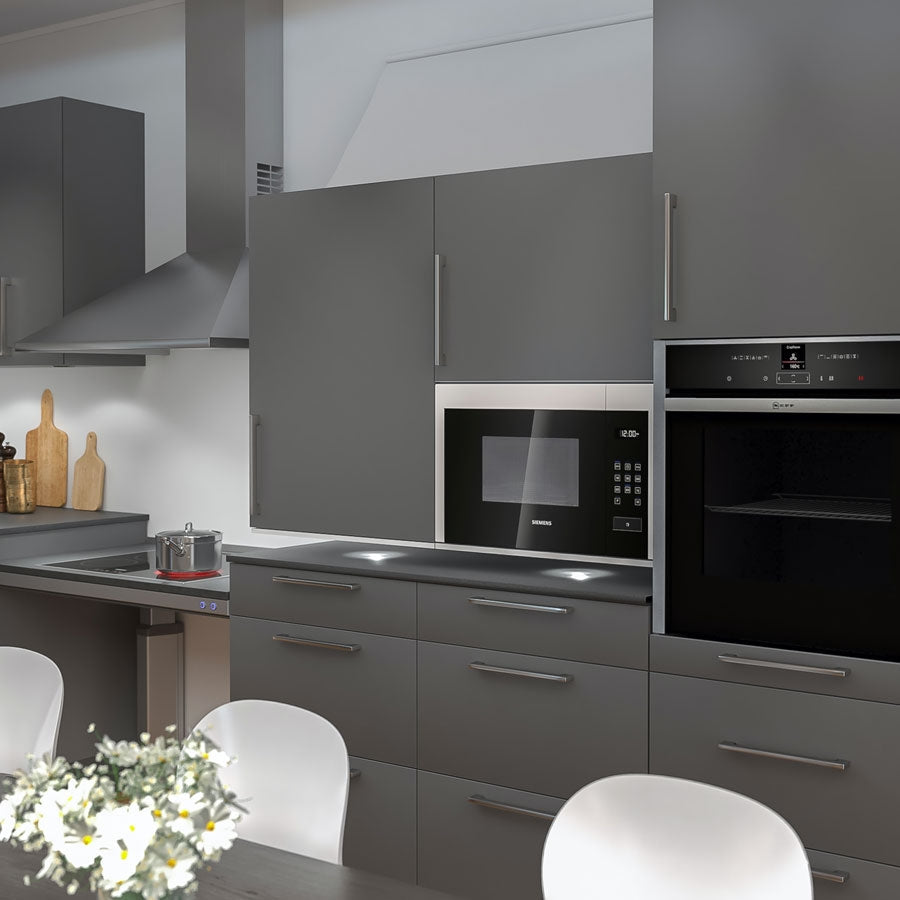

DIAGO 504 is an electrical height-adjustable lifting system used for the mounting of new or existing wall cabinets.

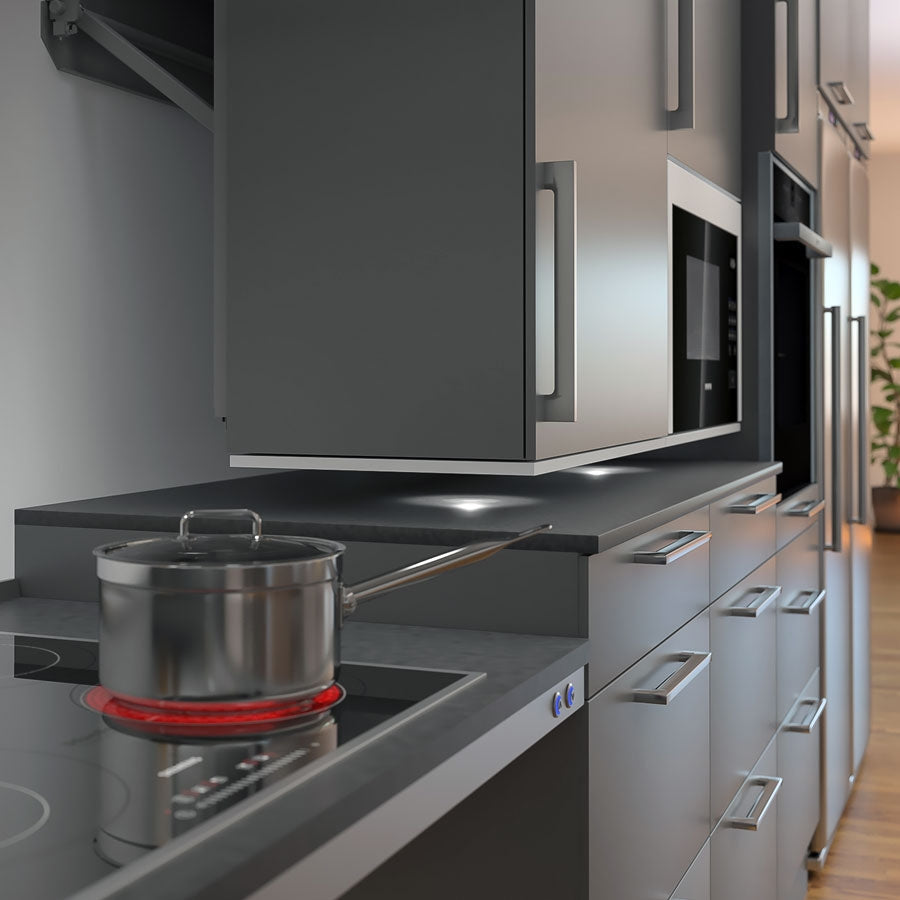

The cabinet lifts is a diagonal lift that lowers the cabinet in a curved motion downwards and forwards to the front of the work surface. The movement can be stopped at any height.
The cabinet lifts is available in two widths that fit cabinets from 24” to 60”. The upper cabinet beam is adjustable to fit cabinet heights 27.6” – 43.3”.
The cabinets can be fine-tuned in all planes (X, Y, Z) to fit the surrounding cabinets exactly. The lift protrudes 4.33" from the wall which must be taken into account when mounting the surrounding cabinets.

The lift is equipped with a reliable safety system that guarantees safe operation without any risk of pinching. Lighting and a light ramp can be mounted on the safety plates. The lift can be integrated with kitchens from any kitchen manufacturer.

Functions and Advantages

  • Lowers one or more cabinets diagonally downwards and forwards to the front of the worktop
  • Takes up no space in the cabinet (mounted behind the cabinet)
  • Easy to reach the contents since the cabinet comes forward when lowered
  • Adjustable depth in all four corners provides the possibility to compensate for inclining wall

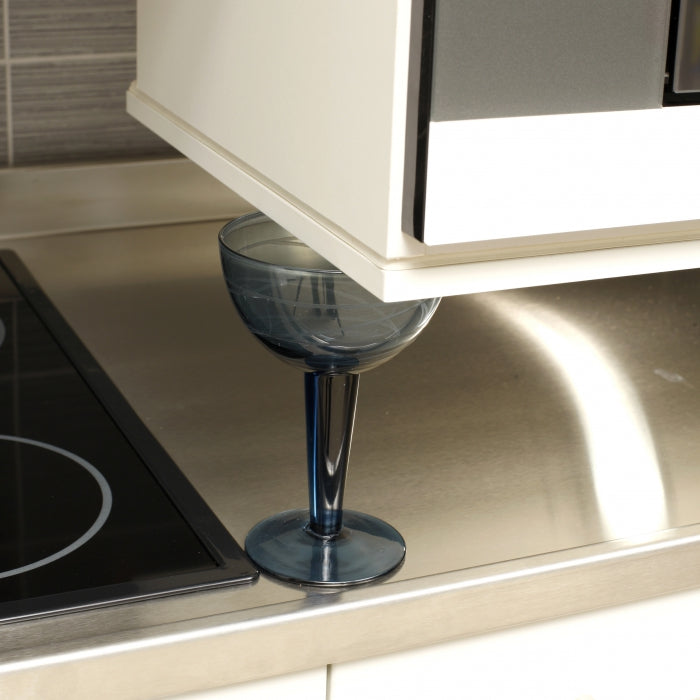

  • Safety plate stops the lowering if it comes in contact with any object on the underlying work surface. Mounted under the cabinets
  • Fits cabinets with height 27.6"-43.3" (70-110 cm)
  • Maximum cabinet width 60" (152 cm)




Width, frame 45.3" (115 cm), for cabinet width 48"-60" (122-152 cm)
Type of lift Diagonal lifting system for wall cabinets
Height adjustment

Motorized, steplessly adjustable 17.1" (435 mm) downwards, 8.9" (227 mm) outwards

Speed level 0.7" (17 mm) / sec.
Operation Wired button
Safety

Safety plate mounted under the cabinet If anything touches the plate, the lift stops

Electrical connection Plug to 110 V
Lifting force 330 lb (150 kg)
IP-class IPX4
Height, frame 28.3" (720 mm)
Space to wall / adjoining cabinet 0.197" (5 mm)
Extension from wall 4.33" (110 mm)
Fits cabinet height

27.6" - 43.3" (700 - 1100 mm)

Fits cabinet depth 10.2" - 15.7" (260 - 400 mm)
Material

Powder-lacquered steel frame (Alu-grey RAL 9006), white-painted safety plates in 0.472" (12 mm) MDF, depth 13.78" (350 mm)

Warranty 3 years warranty
Granberg makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Dimensions
Dimensions - Wall Cabinet Lift Granberg Diago 504 for wall cabinet 48
Dimensions - Wall Cabinet Lift Granberg Diago 504 for wall cabinet 48

Wall cabinet lifts type Granberg DIAGO 504 complete set.

Functions and Advantages

  • Lowers one or more cabinets diagonally downwards and forwards to the front of the worktop
  • Takes up no space in the cabinet (mounted behind the cabinet)
  • Easy to reach the contents since the cabinet comes forward when lowered
  • Adjustable depth in all four corners provides the possibility to compensate for inclining wall
  • Safety plate stops the lowering if it comes in contact with any object on the underlying work surface. Mounted under the cabinets
  • Fits cabinets with height 27.6" - 43.3" (70 - 110 cm)
  • Maximum cabinet width 60" (152 cm)
Useful information
  • Steplessly adjustable 17.1" (435 mm) downwards, 8.9" (227 mm) outwards
  • Fits cabinets with height 27.6" - 43.3" (700 - 1100 mm)
  • Fits cabinets with depth 10.2" - 15.7" (260 - 400 mm)
  • Fits cabinets with width 48" - 60" (122 - 152 cm)
  • When the lift is in the raised position, the cabinet protrudes 4.3" (110 mm) further. To conceal that, adjoining cabinets must be positioned so they protrude the same distance.
  • There must be a gap for movement of 0.2"- 0.3" (5-8 mm) to the next cabinet/wall
Standard equipment

- Cabinet beams
- Safety system in the form of safety plates that are screwed onto the underside of the cabinet.

Benefits of Wall Cabinet Lifts

Wall cabinet lifts have become increasingly popular among homeowners in recent years and for good reason. These innovative devices provide a convenient and space-saving solution to many common storage problems. Let's explore the benefits of wall cabinet lifts and why they might be the perfect addition to your home.

One of the main benefits of wall cabinet lifts is that these cabinet lifts are ideal for those with mobility issues. If you or someone in your household has difficulty reaching or bending, a wall cabinet lift can provide a much-needed solution. By bringing items down to a lower level, you can make them more accessible and reduce the risk of injury.

Another advantage of wall cabinet kitchen lifts is that they make it easy to access items that might otherwise be difficult to reach. For example, if you have a high ceiling in your kitchen, you might struggle to reach items stored on top of your cabinets. With a wall cabinet lifts, you can lower the cabinets down to a more accessible height, making it much easier to grab what you need.

Finally, wall cabinet kitchen lifts are a great way to add a touch of luxury to your home. With sleek, modern designs and high-quality materials, they can transform an ordinary room into an elegant, sophisticated space. Whether you're looking to upgrade your kitchen, bathroom, or bedroom, a wall cabinet lifts can be a stylish and practical addition.
