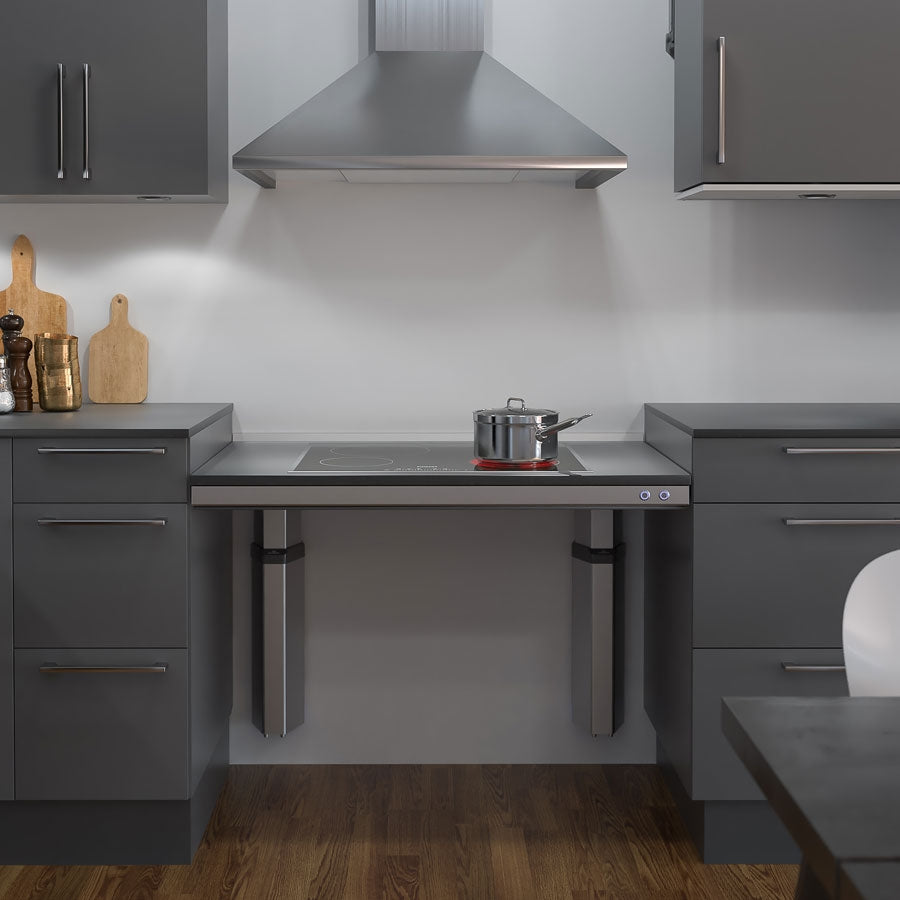

BASELIFT 6300 / 6310 is a worktop lift with great flexibility to be adapted for different needs.

The lift can be used separately or together with Granberg's wall cabinet lift to totally adapt the kitchen. Space is left open below the work surface for knees and legs. Installations below the work surface, (motors, water, drainage), can be concealed by telescopic cover plates that give the kitchen an attractive appearance.

The motors are continuously adjustable and move the work surface quickly and silently to the required height. The lift is equipped with a reliable safety system that guarantees safe operation with no risk of crushing.

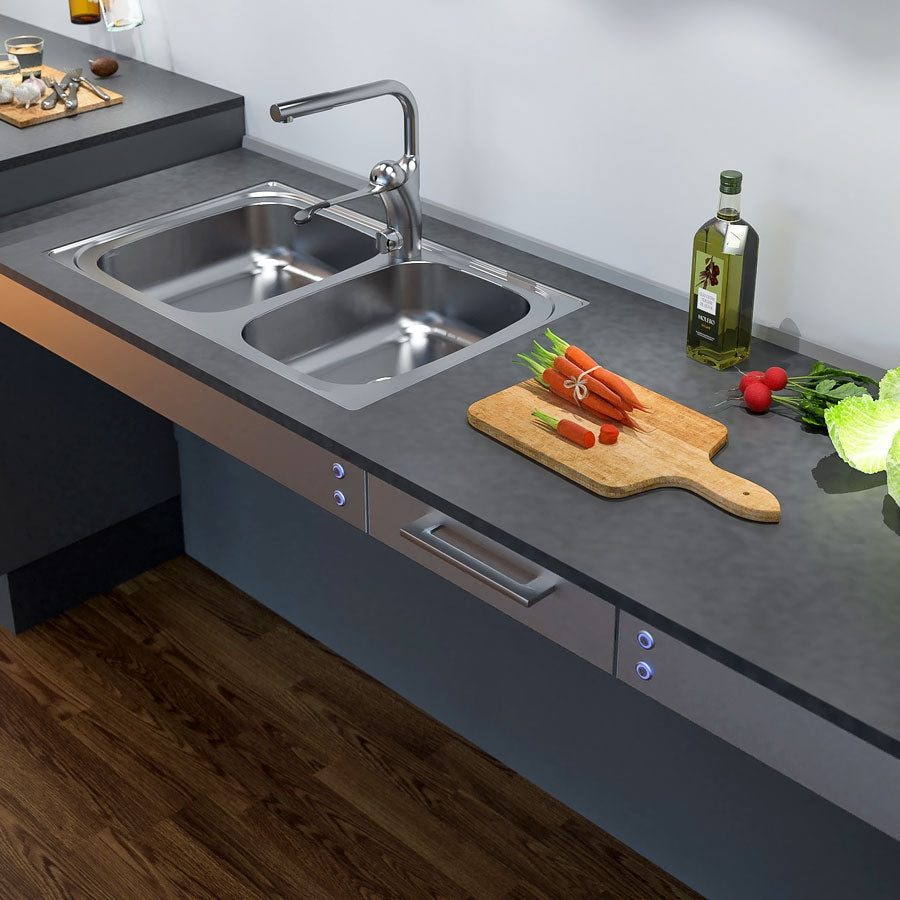

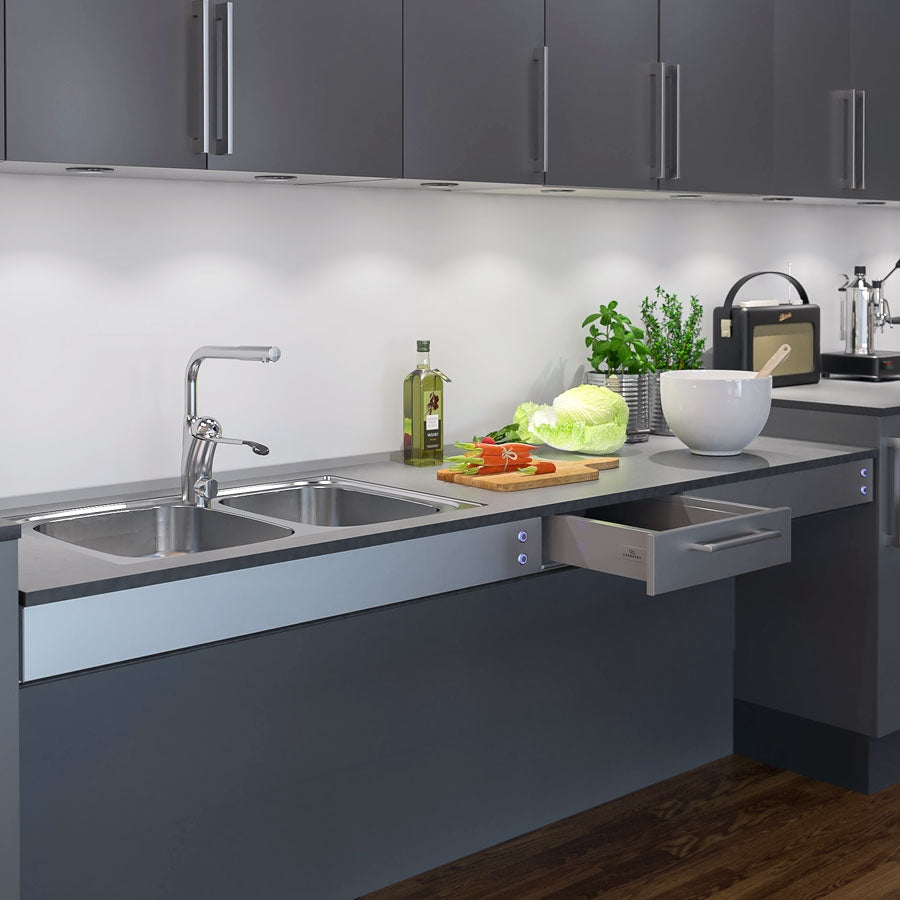

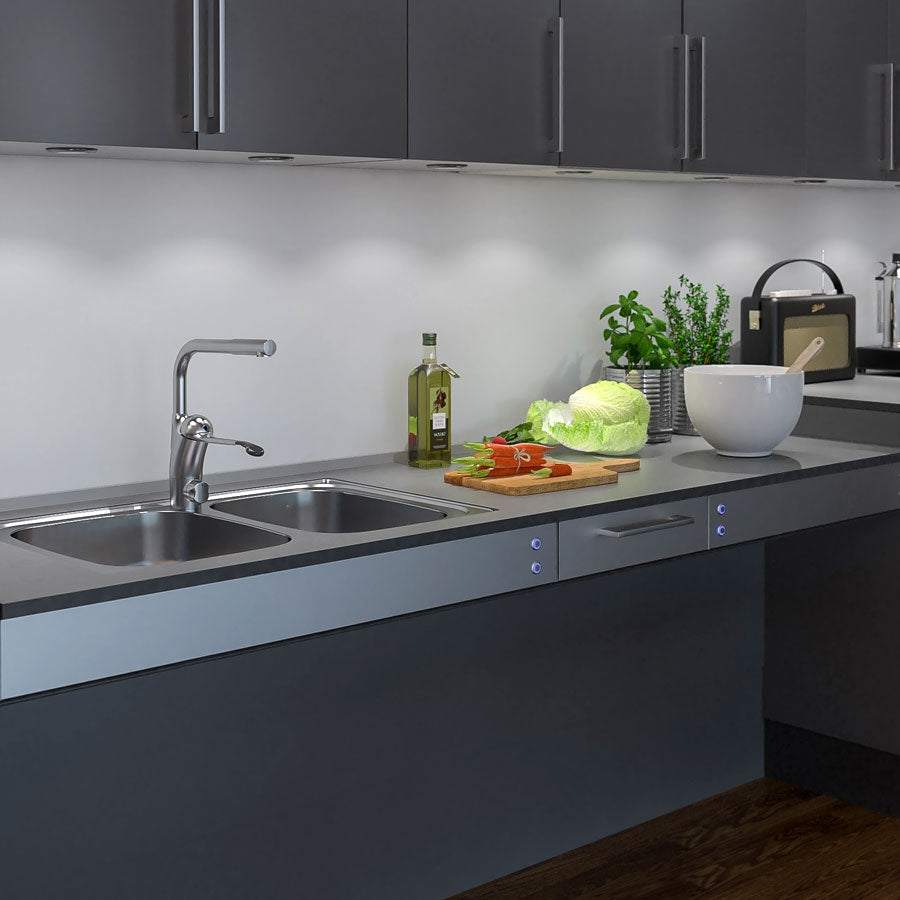

The equipment in the work surface is selected according to the function desired. Sink unit, hob, drawers, chopping boards and other accessories can be integrated in the work surface.


Installation Wall or Floor mounted
Front height 1.57" (39.9 mm) or 4.06" (103 mm)
Height adjustment

Motorized, steplessly adjustable 11.8" (300 mm), 27.6"-39.4" (700-1000 mm) excl. top board

Speed level 1.2" (30 mm) / sec.

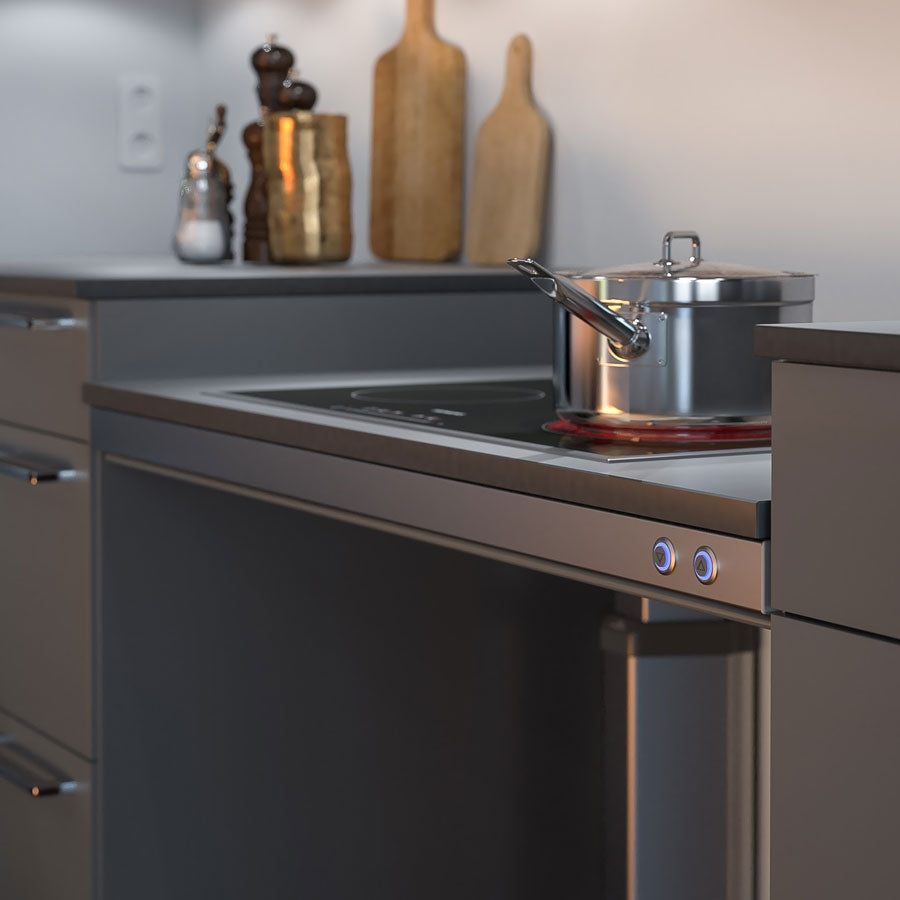

Operation Recessed mounted button

The safety strip is placed under the front edge of the worktop.
If anything touches the safety strip, the lifting unit stops

Electrical connection Plug for 110 V, max 10A
Plumbing connections Connection is made with flexible hoses
Lifting force 220 lb (100 kg)
IP-class IP 20
Frame depth 22.0"- 23.2" (560-590 mm)
Dimensions cover plates

2 pcs, width = width of the lift -0.394" (-10 mm), height 17.24" (438 mm),
thickness 0.472"-0.787" (12-20 mm)

Width worktop Width = width of the lift
Depth worktop 0.59" (15 mm) shallower than worktops on fixed cabinets
Space to wall / adjoining cabinet 0.197" (5 mm)
Space to wall (for tiles) 0.59" (15 mm)
Tiling From 27.56" (700 mm) above floor (alternatively all the way down to the floor)
Delivery modules

Ready-mounted worktop incl. safety switch, motors

Fittings supplied Bracket for fronts

Aluminium frame

Warranty 3 years warranty
Granberg makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Dimensions - Countertop lift system Baselift 6300LA - Wall-mounted, 1.57
Dimensions - Countertop lift system Baselift 6300LA - Wall-mounted, 1.57
Dimensions - Countertop lift system Baselift 6300LA - Wall-mounted, 1.57

Functions and Advantages

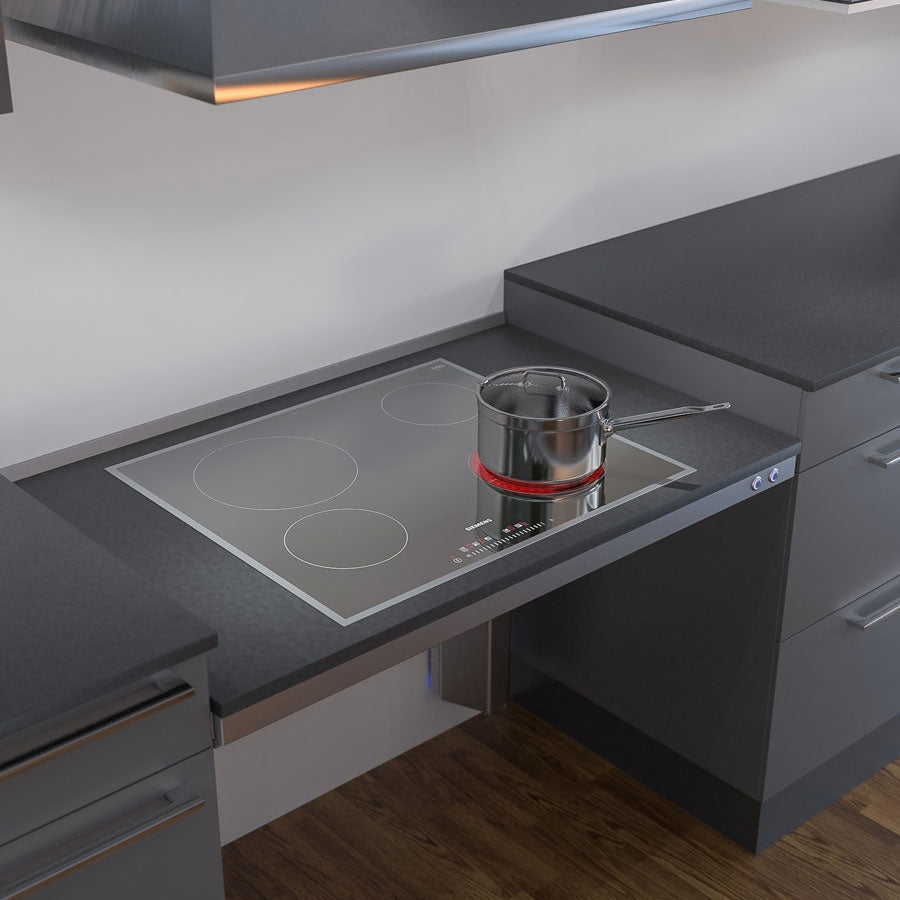

  • Can be equipped with hob
  • 11.8" (30 cm) height adjustment
  • Adjustable depth, 22.0"- 23.2" (560-590 mm) from wall
  • Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
  • Electronic and motor system "Plug and Play"
  • Safety strip covers the front edge under the worktop. (Installed from factory)
  • Brackets and screws for installation of fronts and top board are included in the delivery


Useful information


  • The top board’s depth must be 0.6" (15 mm) shallower than adjoining top boards (to provide a gap for tiles and movement)
  • Width of the top board = width of the lift
  • Sink bowls with a maximum height of 4.7" (120 mm) can be integrated (not 6300L/6310L)
  • Electronics and motor system "Plug and Play"
  • Width of front = width of lift -0.2" (-4 mm)
    Height of front:6300H/6310H = 4.1" (103 mm), 6300L/6310L = 1.6" (40 mm). Fittings enclosed
  • Cover panels can hide installations under the worktop 2 pcs width = width of lift -0.4" (-10 mm), height 17.2" (438 mm), thickness 0.5"-0.8" (12-20 mm).

Standard equipment

  • Factory-mounted aluminium system with movable and tiltable brackets
  • Wall-mounted motors
  • Safety switch

    Transform Your Kitchen into a Smart Space with a Countertop Lift System

    If you are looking for a way to add functionality and modern technology to your kitchen, then you may want to consider installing a countertop lift system. This innovative system can transform your kitchen into a smart space by providing you with a convenient and easy way to access your appliances and other items. Let's understand what a countertop lift system is, how it works, and the benefits it can offer.

    What is a Countertop Lift System?

    A countertop lift system is a motorized mechanism that allows you to lift and lower your kitchen countertop. The system consists of a motor, lift mechanism, control box, and mounting brackets. The lift mechanism can support a range of weight loads and can be operated using a switch or remote control.

    How Does a Countertop Lift System Work?

    The lift system is installed under the countertop, and the motor is connected to the Baselift. When you want to access your Kitchen appliances or other items, you simply press a button on the switch or remote control, and the lift system raises the countertop to the desired height. When you are finished, you can lower the countertop back down to its original position.

    Benefits of a Countertop Lift System

    Convenience and Accessibility

    One of the main benefits of a countertop lift system is convenience and accessibility. With the lift system, you can easily access your appliances and other items without having to bend over or strain your back. This is especially useful for those with mobility issues or disabilities.


    Another benefit of a countertop lift system is that it can save space in your kitchen. When not in use, the countertop can be lowered, providing more countertop space and freeing up room in your kitchen.

    Increased Home Value

    Installing a countertop lift system can increase the value of your home. Homebuyers are often willing to pay more for homes that have modern and innovative features, such as a countertop lift system.



    1. What is the standard depth of countertop?

    • The standard depth of a countertop is typically around 25 to 26 inches (63.5 to 66 cm) deep. However, this can vary depending on the specific countertop and the intended use of the space. Some countertops may be deeper to accommodate larger appliances or to provide more workspace, while others may be shallower for smaller kitchens or for space-saving purposes.

    2. Is a countertop lift system compatible with all types of countertops?

    • Countertop lift systems are compatible with most types of countertops, including granite, quartz, and laminate.


    3. Best countertop warehouse near me?

    Now you may be wondering, where will you find countertop warehouse near you? Just relax. Here comes Accessible Home Solution, We provide you the best accessible countertops with a Baselift mechanism. One of the main benefits of our Baselift countertop lift system is its simplicity and ease of use. With our lift mechanism, you can easily access your equipment and other belongings without bending over or straining your back. This is especially useful for people with reduced mobility or disabilities.
