Description:

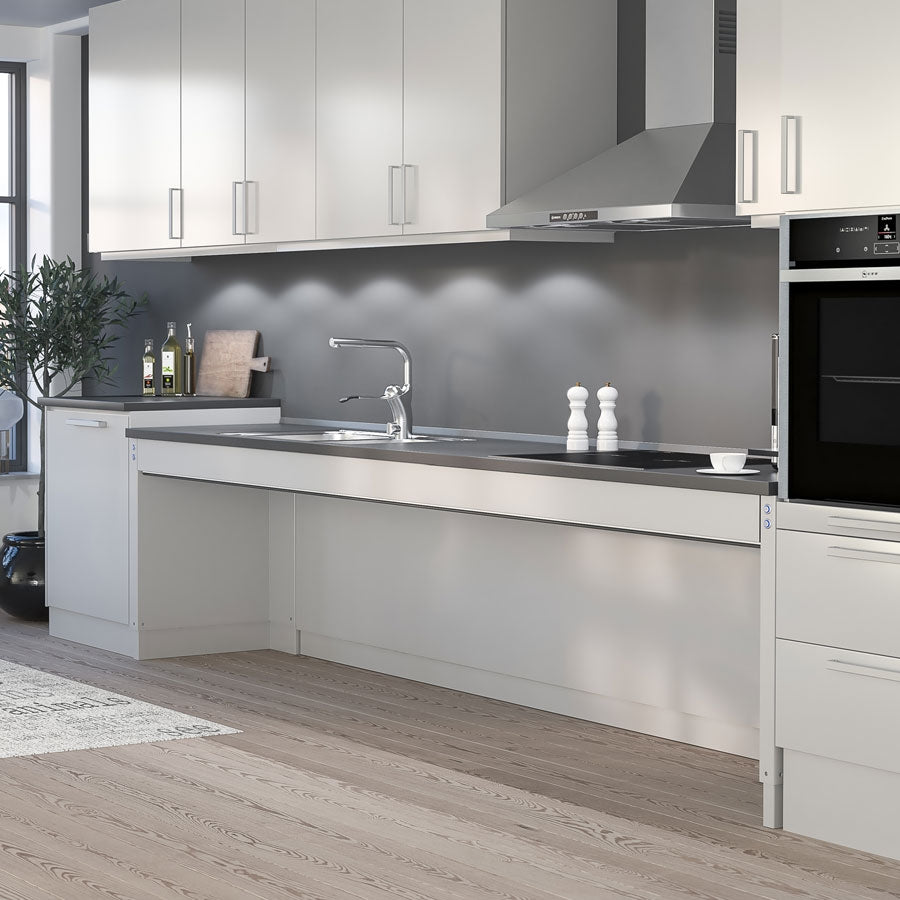

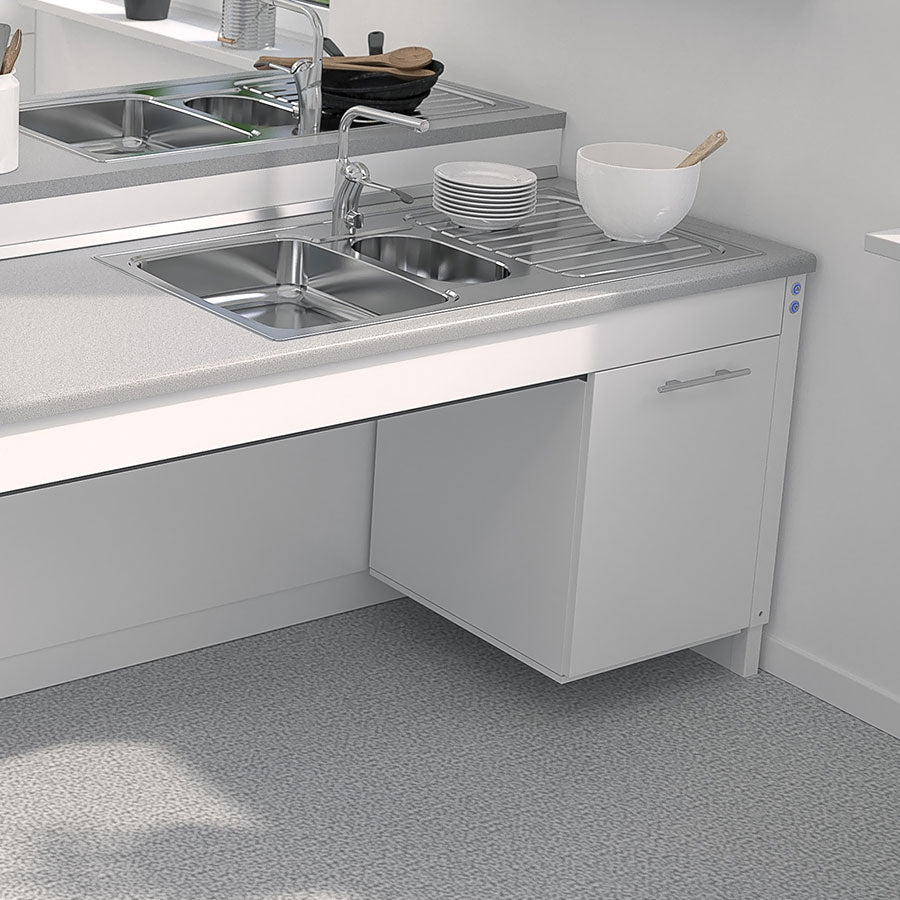

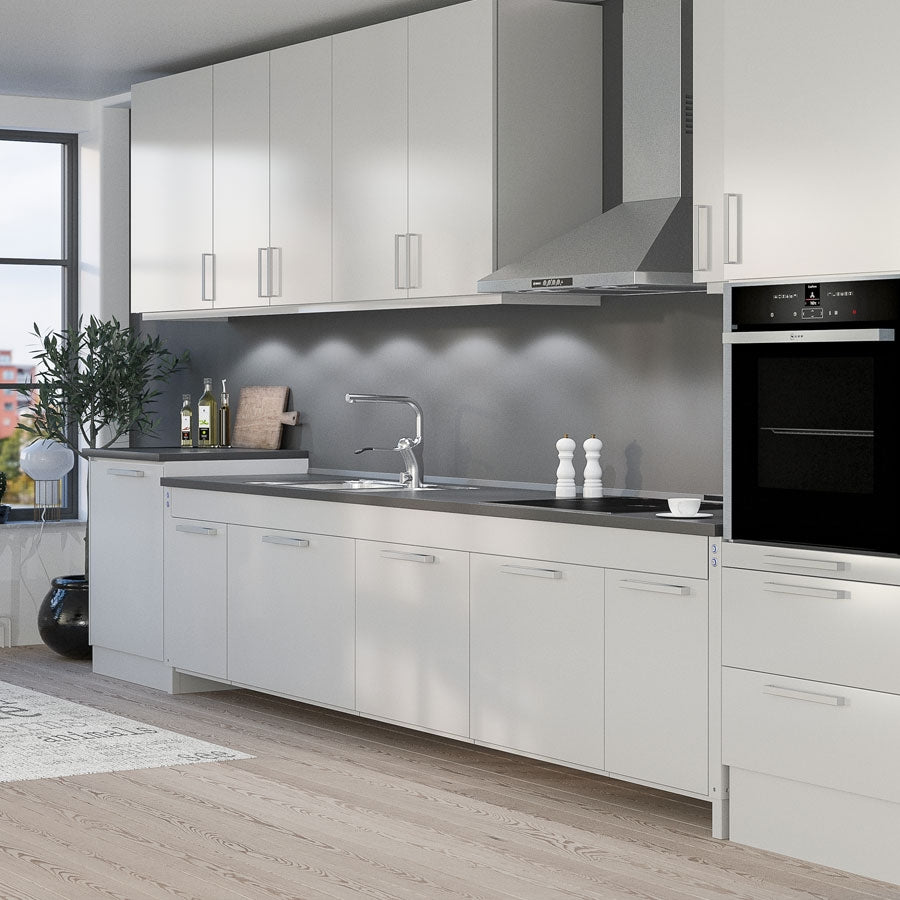

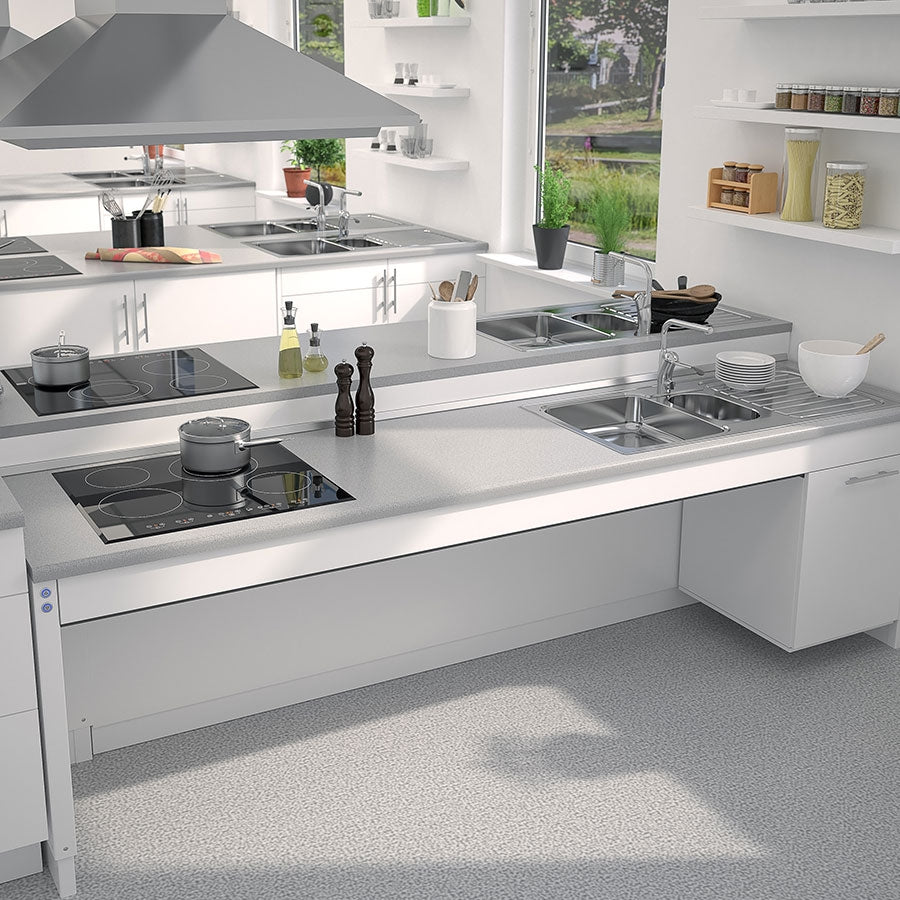

SIDELIFT 6400 is a straight, motorised worktop lift. Cabinets can be hung under the entire lift or under certain sections. Powerful motors (880 lb / 400 kg lifting power) are located on the short sides.

The motors work steplessly and adjust the worktop quickly and quietly to the desired height. The lift is equipped with a reliable safety system that guarantees safe operation without any risk of pinching. The lift is prepared in the factory to facilitate easy installation.

Installation Floor mounted
Height adjustment

Motorised, steplessly adjustable 11.8" (300 mm), 27.6"-39.4" (700-1000 mm) excl. top board)

Speed level 0.8" (20 mm) / sec.

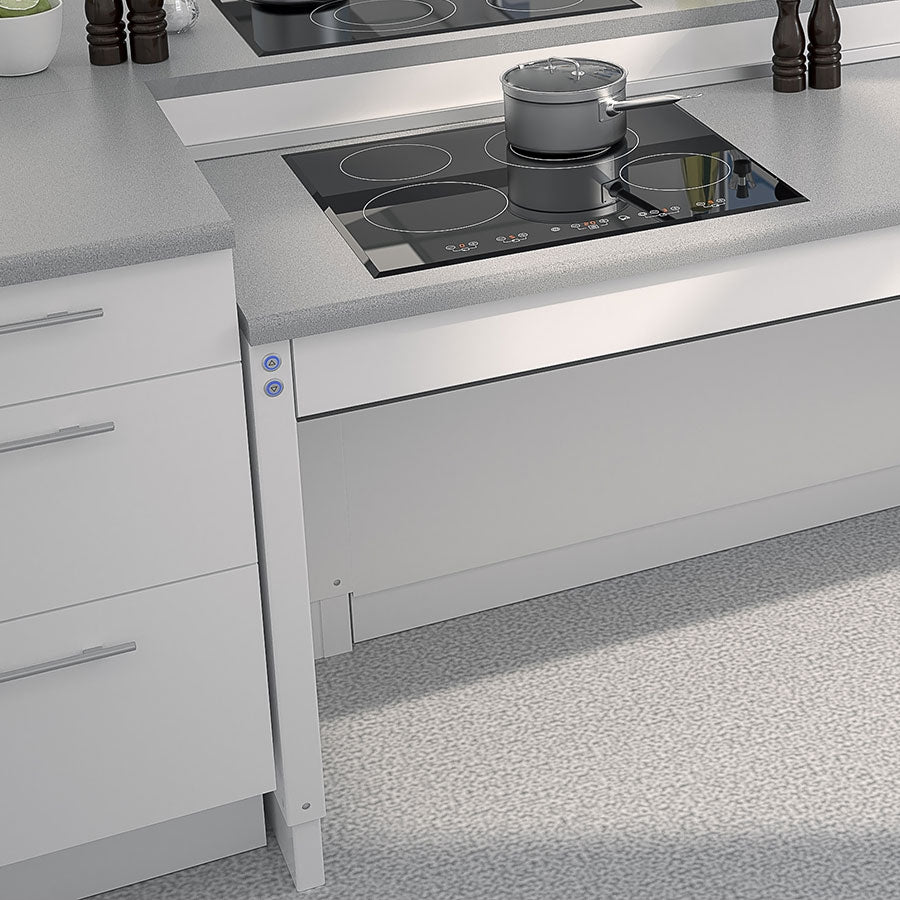

Operation Control button, Mini is located in the motor units (left and right side)
Safety

There are safety switches under the cabinet and under the front in spaces for knees. The function of the safety switch is to stop the movement if it comes into contact with any object.

Electrical connection Plug for 110 V
Plumbing connections Connection is made with flexible hoses
Lifting force 880 lb (400 kg)
IP-class IP 20
Frame depth 22.1" (561 mm)
Front height 4.1" (103 mm)
Dimensions cover plates

Width = Width of lift -16.1" (-410 mm)
2 pcs Height 17.2" (438 mm)
Thickness 0.5" (12 mm)

Width worktop Width = width of the lift
Depth worktop 0.6" (15 mm) shallower than worktops on fixed cabinets
Space to wall / adjoining cabinet 0.2" (5 mm)
Space to wall (for tiles) 0.6" (15 mm)
Tiling From 27.6" (700 mm) above floor (alternatively all the way down to the floor)
Delivery modules

1 package with motor units. 1 package with length-dependent beams

Material

Motor units in lacquered steel. Aluminium beams

Warranty 3 years warranty
Granberg makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Dimensions
Dimensions - Countertop lift system Granberg Sidelift 6400, 30
Dimensions - Countertop lift system Granberg Sidelift 6400, 30
Dimensions - Countertop lift system Granberg Sidelift 6400, 30

Functions and Advantages

  • Motorised, straight worktop lift with side motors

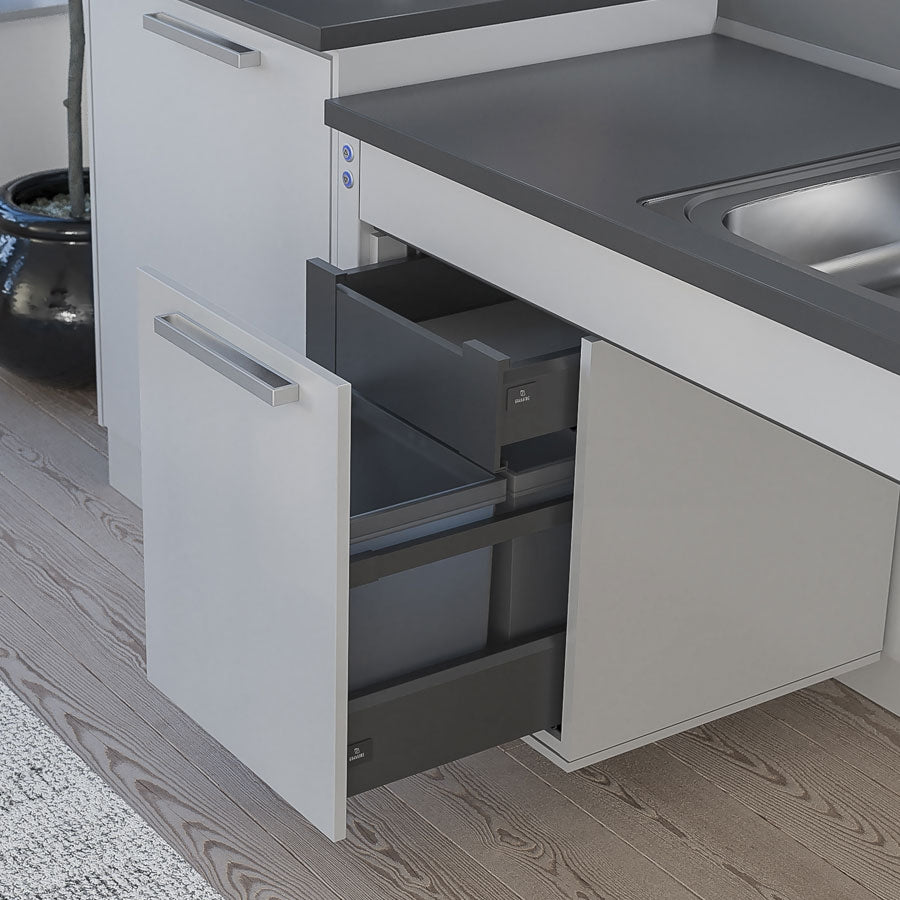

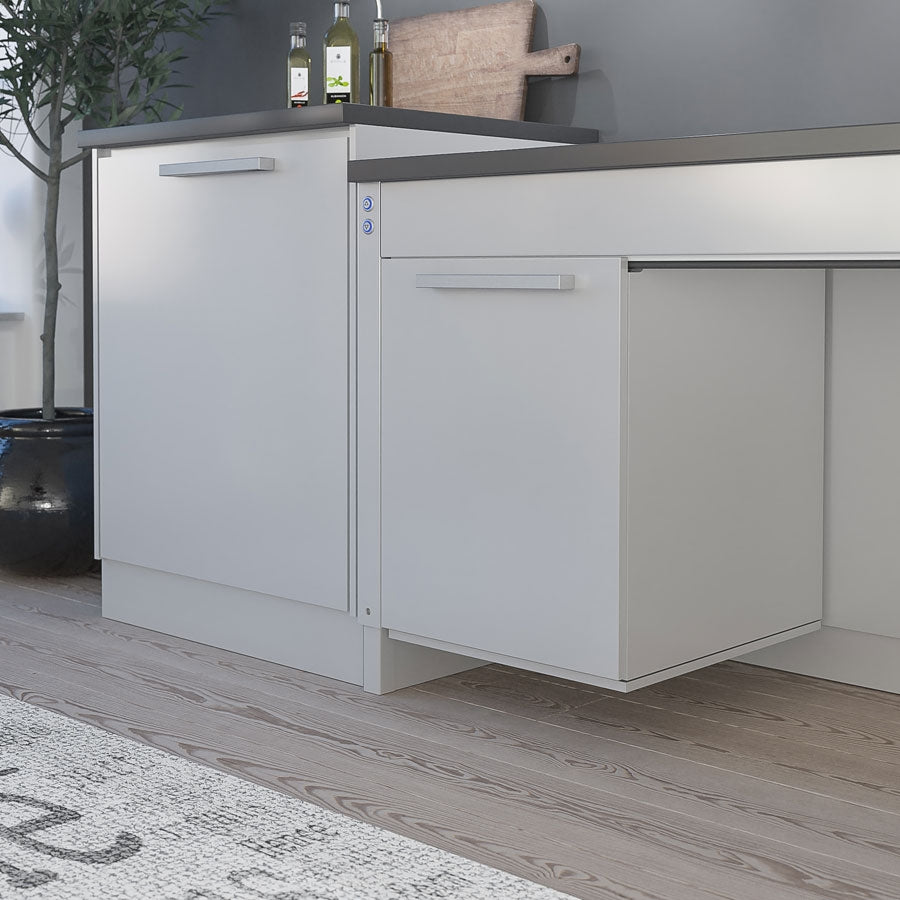

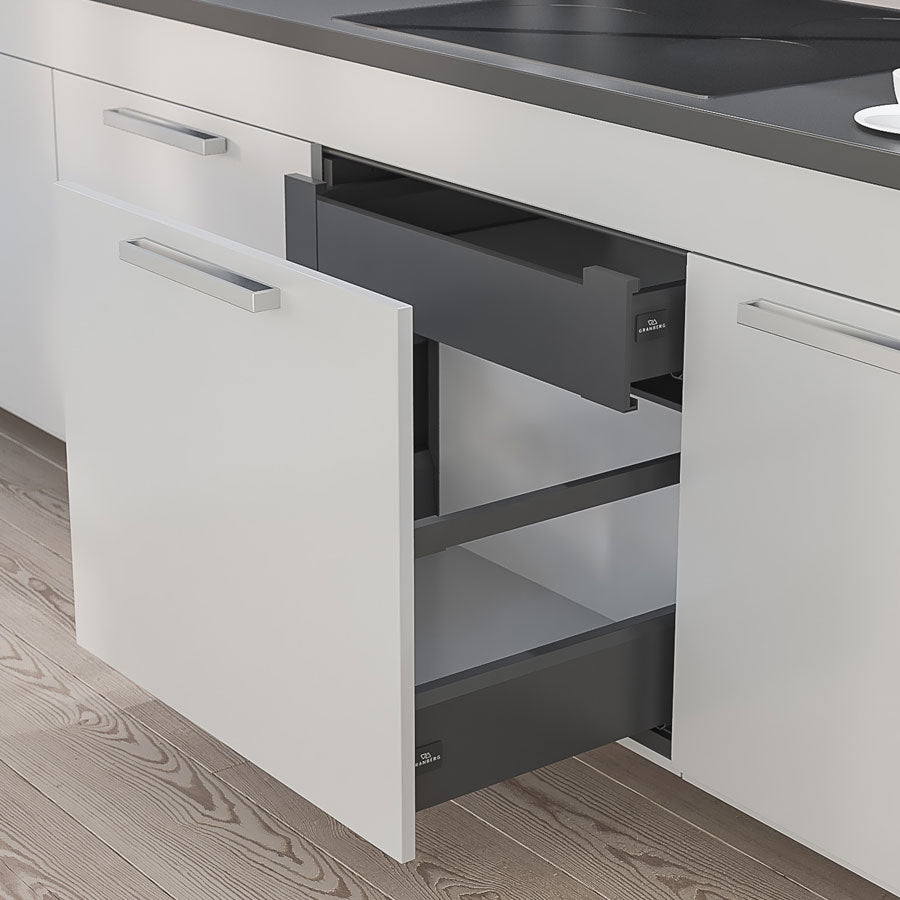

  • Cabinets can be hung under the entire worktop or under certain parts
  • Height-adjustable 27.6"-39.4" above the floor (excl. top board)
  • 880 lb (400 kg) lifting power
  • Safety switch under cabinets and where there are spaces for knees
  • Control button, Mini located in motor units

Useful information

  • Fittings for top board enclosed
  • Width of the top board = width of the lift
  • The top board's depth must be 0.6" (15 mm) shallower than adjoining top boards (to provide a gap for tiles and movement)

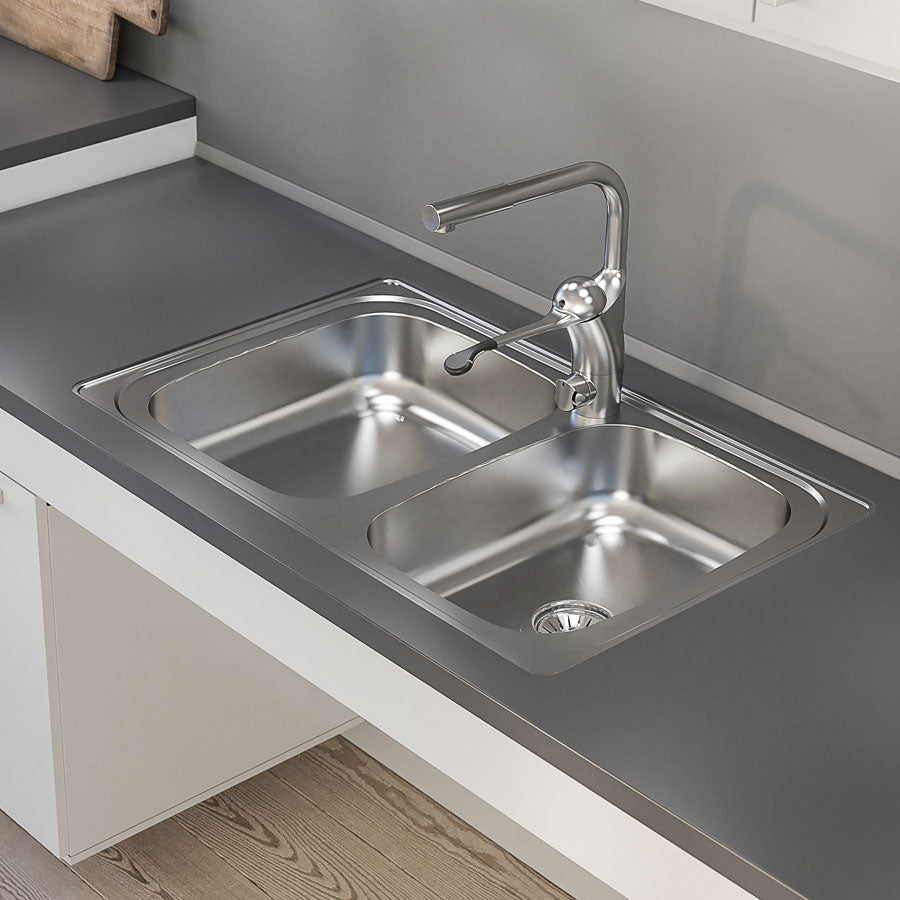

  • Sink bowls with a maximum height of 120 mm can be integrated
  • Electronics and motor system "Plug and Play"
  • Width of front = width of lift -3.7" (-94 mm) Height of front = 4.1" (103 mm). Fittings enclosed
  • Cover panels can hide installations under the worktop Width = width of lift -16.1" (-410 mm)
  • 2 pcs height 438 mm, thickness 0.5"-0.8" (12-20 mm)

Standard equipment

  • Factory-mounted aluminium system
  • Floor-mounted motors
  • Control button

Maximize Your Space with a Countertop Lift System - Here's How

Are you tired of struggling to find enough space on your kitchen countertop? Are you looking for a way to increase the functionality of your workspace without having to sacrifice precious square footage? Look no further than a countertop lift system.

A countertop lift system is a mechanism that allows you to raise and lower your countertop to different heights, making it possible to use the same surface for multiple purposes. With a countertop lift system, you can easily transform your kitchen island into a dining table, or lower your workspace to a comfortable height for food preparation.

Today we will explore the different types of countertop lift systems, their benefits, factors to consider when choosing a system, the installation process, maintenance tips, and the cost of these systems.

Types of Countertop Lift Systems

There are two main types of countertop lift systems: motorized and manual.

Motorized Lift Systems

Motorized lift systems are operated with a motor that raises and lowers the countertop. These systems are more expensive than manual systems, but they are more convenient and easier to use. They also offer more customization options, such as the ability to program preset heights and integrate with smart home technology.

Manual Lift Systems

Manual lift systems are operated with a crank or handle that manually raises and lowers the countertop. These systems are more affordable than motorized systems, but they require more effort to operate. They are also limited in terms of customization options.

Benefits of Countertop Lift Systems

Countertop lift systems offer several benefits, including:

Space-saving

These lift systems maximize space by allowing you to use the same surface for multiple purposes. You can raise the countertop to create a dining table or lower it to create additional workspace.

Ergonomic design

These lift mechanisms allow you to customize the height of your workspace, which can reduce strain on your back and neck. This can make it easier to work for longer periods without experiencing discomfort.

Improved functionality

Countertop lift systems increase the functionality of your workspace by allowing you to use the same surface for multiple purposes. This can make your kitchen more versatile and efficient.
