Granberg Countertop Lift System | Baselift Corner | AHS

Granberg Countertop Lift System | Baselift Corner | AHS

Contact form

View full details

Description:

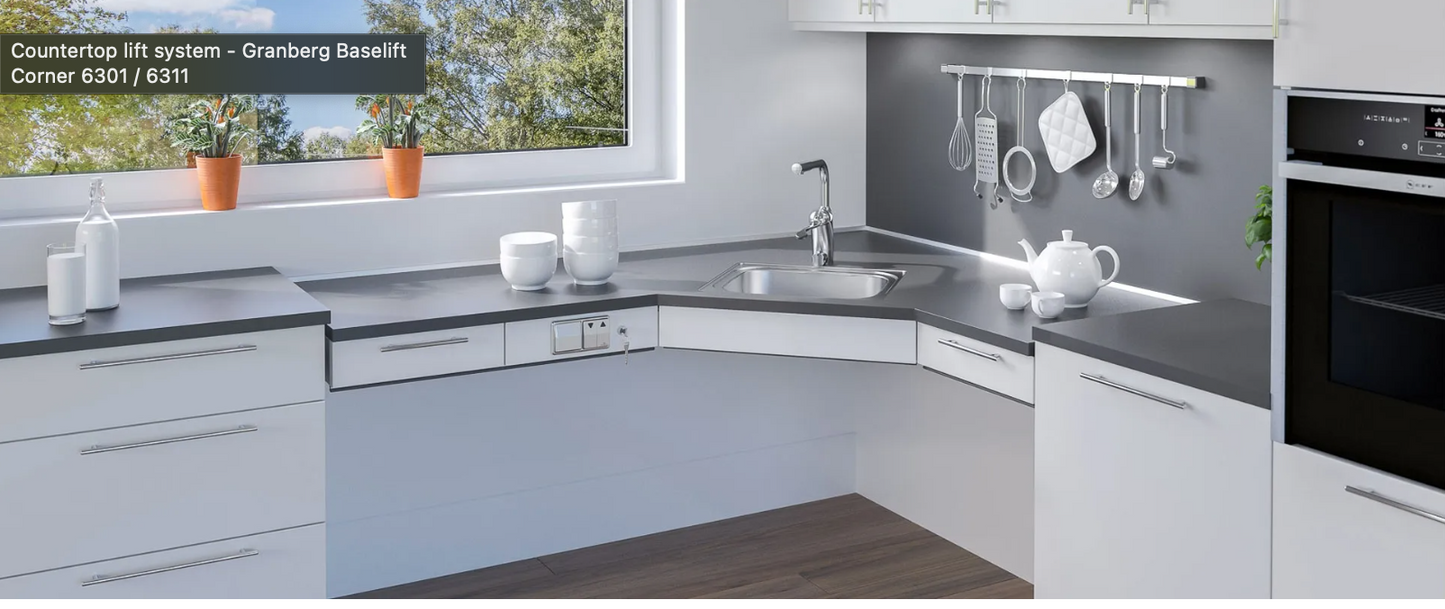

BASELIFT CORNER is a wall- or floor mounted worktop lift with great flexibility to be adapted for different needs.

The lift can be used separately or together with Granberg's wall cabinet lift to totally adapt the kitchen. Space is left open below the work surface for knees and legs. Installations below the work surface, (motors, water, drainage), can be concealed by telescopic cover plates that give the kitchen an attractive appearance.

The motors are continuously adjustable and move the work surface quickly and silently to the required height. The lift is equipped with a reliable safety system that guarantees safe operation with no risk of crushing.

Specification:

Corner solution 45° front edge, 90° wall
Height adjustment

Motorised, steplessly adjustable 11.8" (300 mm), 27.6"-39.4" (700-1000 mm) excl. top board)

Speed level 1.2" (30 mm) / sec.
Operation Corded button
Safety

The safety strip is placed under the front edge of the worktop.
If anything touches the safety strip, the lifting unit stops

Electrical connection 2 Plugs for 110 V
Plumbing connections Connection is made with flexible hoses
Lifting force 220 lb (100 kg)
IP-class IP 20
Frame depth Adjustable depth, 22.0" - 23.2" (560 – 590 mm) from wall
Dimensions cover plates

2 pcs, height 17.2" (438 mm), thickness 0.5"-0.8" (12-20 mm)

Width worktop Width = width of the lift
Depth worktop 0.6" (15 mm) shallower than worktops on fixed cabinets
Space to wall / adjoining cabinet 0.2" (5 mm)
Tiling 0.6" (15 mm)
Delivery modules

Ready-mounted worktop incl. safety switch, motors

Material

Aluminum frame

Warranty 3 years warranty
Granberg makes a commitment to remedy material and manufacturing defects for a period of three years from the invoicing date.
Dimensions
Dimensions - Countertop lift system Baselift Corner 6311HA, 45°- 90°, floor-mounted
Dimensions - Countertop lift system Baselift Corner 6311HA, 45°- 90°, floor-mounted
Dimensions - Countertop lift system Baselift Corner 6311HA, 45°- 90°, floor-mounted

41.14"x41.14" (104.5 x 104.5 cm)
45° front edge, 90° wall



Functions and Advantages

  • Can be equipped with drawers, hob and sink
  • 11.8" height adjustment
  • Adjustable depth, 22.0" - 23.2" from wall
  • Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
  • Electronic and motor system "Plug and Play"
  • Safety strip covers the front edge under the worktop. (Installed from factory)
  • Brackets and screws for installation of fronts and top board are included in the delivery

    Factors to Consider Before Installing a Countertop Lift System

    Before embarking on the installation process, it's important to consider a few key factors to ensure you choose the right countertop lift system for your needs.

    1. Weight Capacity

    Different countertop lift systems have varying weight capacities. It's crucial to assess the weight of your countertop and any additional items or appliances that will be placed on it. Ensure that the lift system you select can comfortably handle the load to prevent any issues or malfunctions.

    2. Installation Requirements

    These lift systems may require specific installation requirements, such as electrical connections or structural support. It's essential to evaluate your space and determine if any modifications or preparations are necessary before installing the lift system.

    3. Maintenance and Durability

    Consider the maintenance requirements and durability of the countertop lift system. Look for systems that are built to last and require minimal upkeep. Additionally, inquire about warranties or service agreements to ensure long-term reliability and support.

    Selecting the right countertop lift system can be a daunting task.
